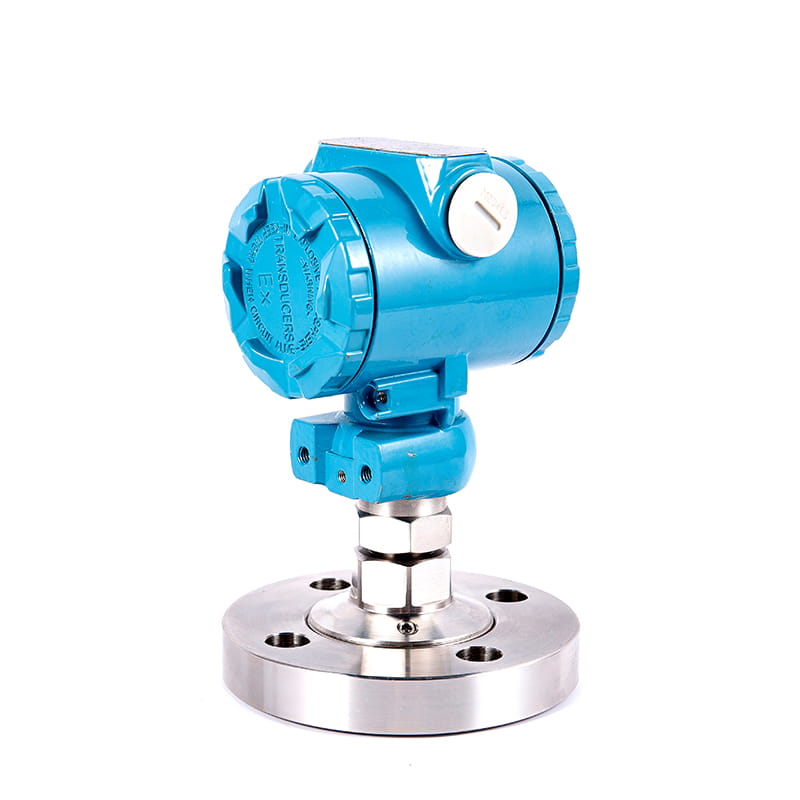

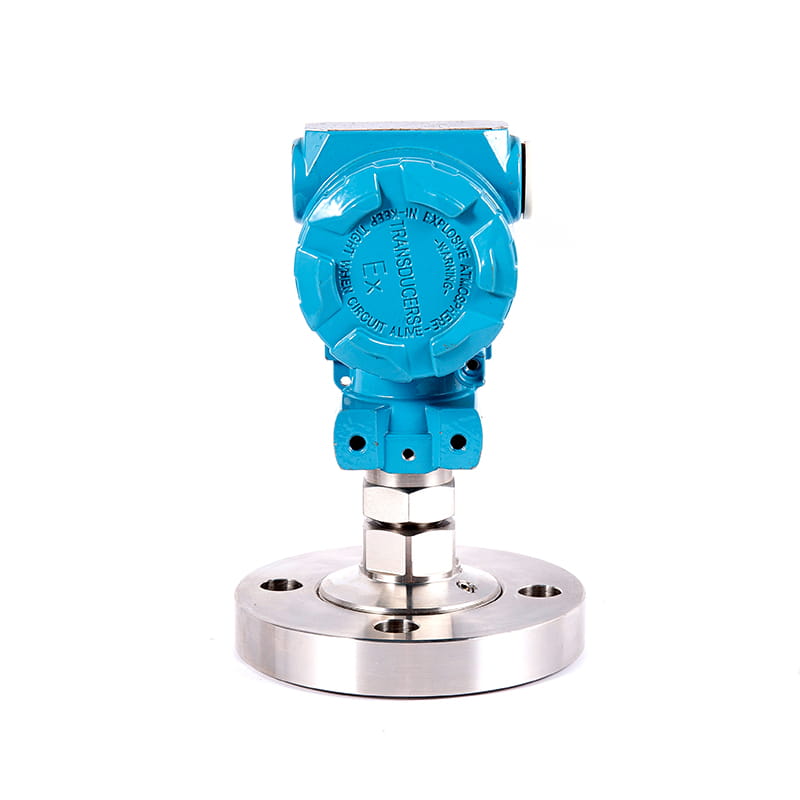

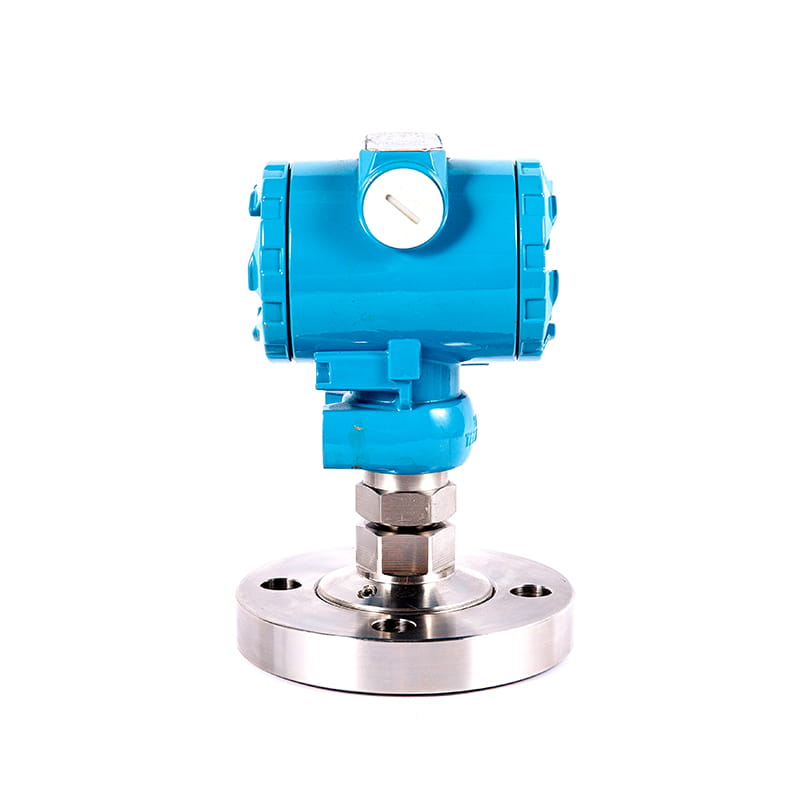

เครื่องส่งสัญญาณความดันอัจฉริยะ YSZC-7 ซีรี่ส์

Model

YSZC-7

Fitting threads

M20 × 1.5

Numerical precision

± 0.05 ％

Simulation accuracy

± 0.075 ％～± 0.1 ％ F.S

Full performance

± 0.25 ％ F.S

stability

0.25 % for 60 months

Turndown ratio

100:1

Measurement rate

0.2S

weight

2.4Kg

Measuring range

（ 0 ～ 60 ） Pa ～（ 0 ～ 40 ） MPa

Electrical parameters

★ Output signal: 4 ~ 20mA DC

HART protocol data communication port

S-PORT serial communication port

★ Transmission mode: two-wire system

★ Power supply voltage : 24V DC

Environmental conditions of use

Temperature: -30 °C~ 80 °C

Ingress protection

IP67

Sealing level

JIS C0920 waterproof rating

Note: There are many specifications and accessories of intelligent transmitters, so please consult our company if you need to order.
